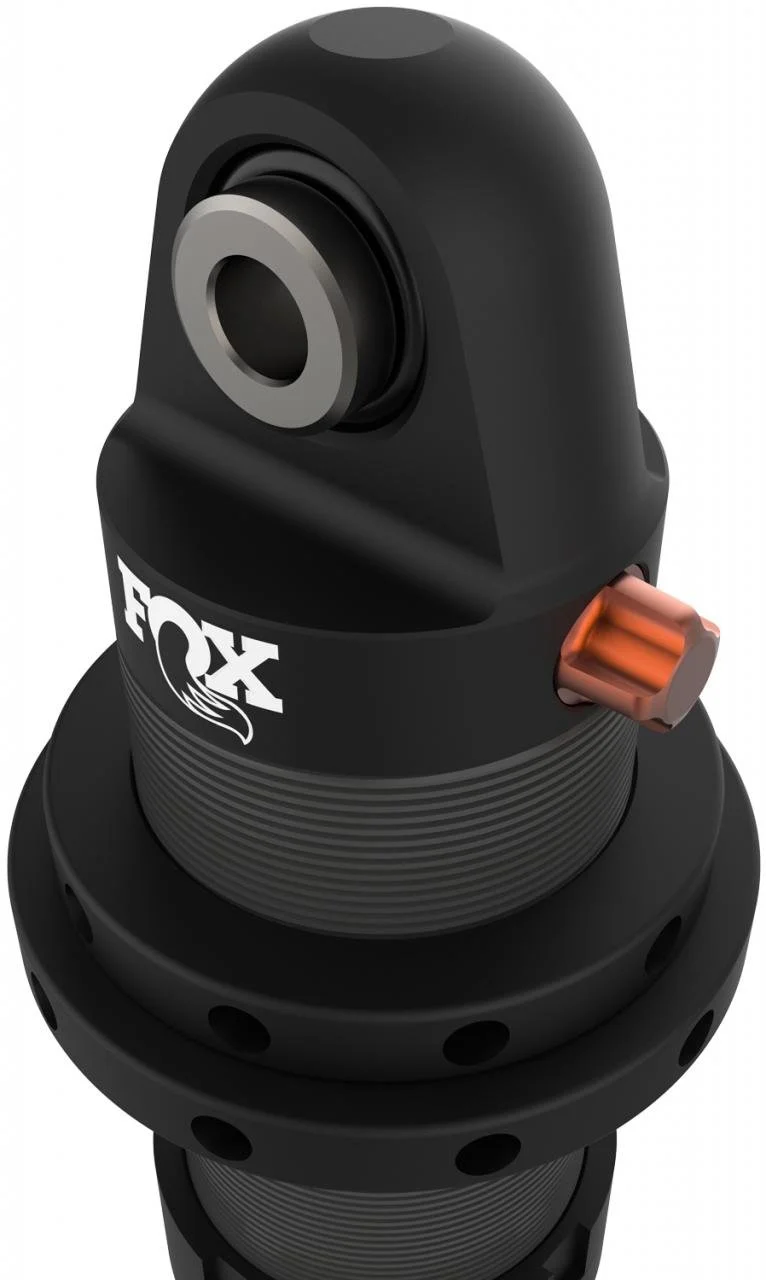

2.5 Factory Race Series Coil Over Shocks
Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.
TRAVEL OPTIONS
8.0” — Enquire
10” — Enquire
12” — Enquire
14” — Enquire
16” — Enquire
Body Finish: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
Bearing: Wire ring bearing design
Wear Band: PTFE coated bronze impregnated steel piston wearband
Eyelet: 2” black anodized billet aluminum lower eyelet now standard
FAV Cap: Orange anodized billet aluminum FAV cap
Top Mount: Eyelet
Bottom Mount:Eyelet
Hose: -10 x 18.00
Mounting: 1/2 x 1-1/2
Valving: 807-24-300
